What Is Arduino Portenta H7 and How It's Better? [Explained]

Arduino is a well-known brand in the IoT industry. For the uninitiated, it is an open-source hardware and software company which designs and manufactures programmable electronic boards. It has a worldwide customs of around 30 million users and its products are used everywhere, from everyday objects to satellites and complex scientific instruments. At its CES 2020 event, the company introduced its latest creation, the Arduino Portenta H7 module. The device is targeting the IoT industry by providing businesses with an easy and cost-effective way to integrate IoT platform with their products. In this article, we are going to take a quick wait at the Arduino Portenta H7 module to see what it offers, and how it's going to affect the future of IoT devices.

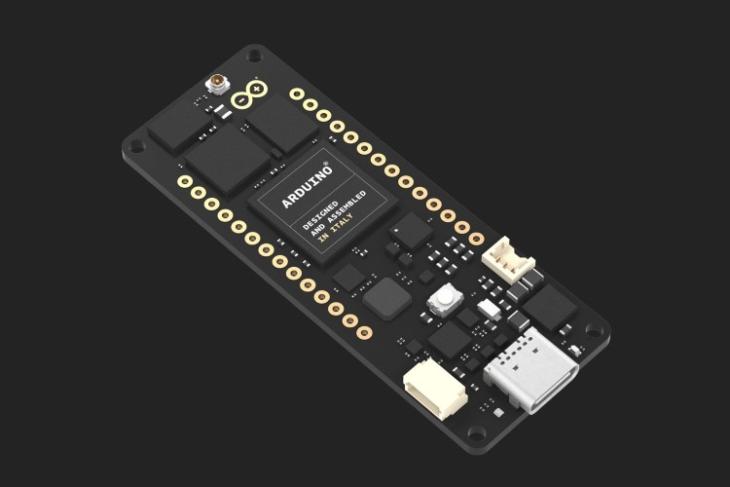

What is Arduino Portenta H7 Module?

Arduino Portenta H7 module is the first member of the powerful low-power new Arduino Portenta Family which is designed for enervating industrial applications, AI edge processing, and robotics. The Portenta H7 leverages the performance and flexibility of the dual-core STM32H747 that can run tasks in parallel. It tin can simultaneously run a loftier-level lawmaking forth with existent-time tasks. For example, according to Arduino'due south website, it is possible to execute Arduino compiled code along with MicroPython one, and accept both cores to communicate with one some other.

It is made possible by the Portenta H7 module's dual-core processor made of a Cortex M7 core running at 480 MHz and a Cortex M4 cadre running at 240 MHz. Co-ordinate to Arduino, the 2 cores communicate via a Remote Process Call mechanism that allows calling functions on the other processor seamlessly. The components have an operating temperature range of -40 to 85 degrees Celsius (-forty to 185 degrees Fahrenheit) which makes information technology perfect for industrial usage.

When information technology comes to software, the Arduino Portenta H7 module is capable of running Arduino lawmaking, Python, and Javascript. That makes it accessible to a broader audience of developers.

Arduino Portenta H7 Module: Tech-Specs

You can find the tech specification of the Portenta H7 module in the table below.

Microcontroller	STM32H747XI dual Cortex®-M7+M4 32bit low power ARM MCU (datasheet)
Radio module	Murata 1DX dual WiFi 802.11b/chiliad/n 65 Mbps and Bluetooth 5.i BR/EDR/LE (datasheet)
Secure Element (default)	NXP SE0502 (datasheet)
Lath Power Supply (USB/VIN)	5V
Supported Battery	Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
Circuit Operating Voltage	3.3V
Current Consumption	ii.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
Display Connector	MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
GPU	Chrom-ART graphical hardware Accelerator™
Timers	22x timers and watchdogs
UART	4x ports (2 with period control)
Ethernet PHY	10 / 100 Mbps (through expansion port merely)
SD Card	Interface for SD Card connector (through expansion port but)
Operational Temperature	-40 °C to +85 °C (excl. Wireless module) / -ten °C to +55 °C (incl. Wireless module)
MKR Headers	Use any of the existing industrial MKR shields on it
Loftier-density Connectors	2 80 pin connectors will betrayal all of the board's peripherals to other devices
Camera Interface	eight-scrap, upwardly to 80 MHz
ADC	3× ADCs with 16-fleck max. resolution (up to 36 channels, up to 3.half-dozen MSPS)
DAC	2× 12-bit DAC (1 MHz)
USB-C	Host / Device, DisplayPort out, High / Full Speed, Power delivery

Arduino Portenta H7 Module: Features

In this section, we are going to briefly talk about the features of Arduino Portenta H7 module that we accept not discussed. Nosotros accept already talked nearly the module's processor, operating component temperature, and the supported programming languages. Let's see what else it brings to the table.

1. Graphics Accelerator

1 of the best features of the Portenta H7 module is the on-lath GPU, the Chrom-ART Accelerator. This GPU fleck likewise includes a dedicated JPEG encoder and decoder. The addition of a graphics accelerator opens several possibilities for users. For example, users can now connect an external monitor and build their own dedicated embedded computer with a user interface. This was not possible before as yous need a graphics accelerator to drive external displays. This addition alone is going to be a game-changer.

2. Connectivity

If you look at the tech-specs of the Portenta H7 module, you will notice that information technology comes with an onboard wireless module (Murata 1DX dual WiFi 802.11b/g/due north 65 Mbps and Bluetooth 5.1 BR/EDR/LE /) that supports the latest WiFi and Bluetooth standards. Apart from the wireless connectivity, the Portenta H7 also comes with various wired connectivity options including UART, SPI, Ethernet, and I2C among others.

3. USB-C

One of the biggest addition to the new Portenta H7 module is the USB-C connector. Today all the modern smartphones and laptops are coming with a USB-C port as it offers tons of benefits and accessory support. You volition exist happy to know that the Portenta H7 module also comes with a USB-C connector. It is used every bit the board's programming connector and can also be used to ability the board, as a USB Hub, to connect a DisplayPort monitor, or to deliver ability to OTG connected devices. The versatility of the USB-C port gives the module much-need flexibility.

4. Crypto Authentication Chip

If you are thinking of adding IoT to your business concern, one of the outset concerns y'all might accept is about security, and rightly so. Subsequently all, once a device is connected, information technology's susceptible to online attacks. Thankfully, the Portenta H7 module comes with an onboard crypto hallmark scrap which gives the device a loftier caste of tamper resistance. Users get to cull from the Microchip ATECC608A and the NXP SE050C2 options when they are ordering the device. With onboard crypto fries, you can enable features like cloud hallmark, firmware validation, accessory authentication, Intellectual Property (IP) protection, bulletin encryption. and more than to secure your IoT devices.

five. Multiple Configuration Options

The Arduino Portenta H7 will be available in different configuration options that you can choose depending on your budget and needs. The default Arduino Portenta H7 comes with following:

• 8MB SDRAM
• 16MB NOR Flash
• 10/100 Ethernet Phy
• USB HS
• NXP SE050C2 Crypto
• WiFi/BT Module
• Ceramic Antenna
• DisplayPort over USB-C

Yous can upgrade this default configuration to get a more powerful board. The Portenta H7 tin can host upwards to 64 MB of SDRAM, and 128 MB of QSPI Flash. You can also add an external UFL connector to get a college gain-antenna and choose between crypto-fleck from Microchip and NXP. The configuration options will go live when the board is up for order.

Arduino Portenta H7 Module: Employ Cases

The ability and versatility of the Arduino Portenta H7 module open information technology upwards for beingness used in various industries. While the visitor is targeting the product at SMBs and Enterprises, thank you to its affordable pricing, even individual tinkerers tin go their hands on it to play with the device. According to the company, among other utilise cases, it finds the Arduino Portenta H7 Module to be most used in the following:

• High-end industrial machinery
• Laboratory equipment
• Reckoner vision
• PLCs
• Manufacture-ready user interfaces
• Robotics controller
• Mission-disquisitional devices
• Defended stationary computer
• High-speed booting computation (ms)

Arduino Portenta H7 Module: Pricing and Availability

The Arduino Portenta H7 module is bachelor for pre-order with February being the expected delivery date. You lot can pre-order the device right now for $99.90. I could non see an pick to customize the device equally of now. I am guessing that the customization options will go live when the device goes live. If you lot cannot wait for the device, you can apply to go the beta customers to go it now. Note that the beta programme is initially targeted to enterprise and SMB customers and professional makers.

• Pre-society Arduino Portenta H7 module: $99.90
• Join the Beta
